Example - System Modelling

After creating a new project in Dymodia, the first step is to create a new system architecture model to represent the system.

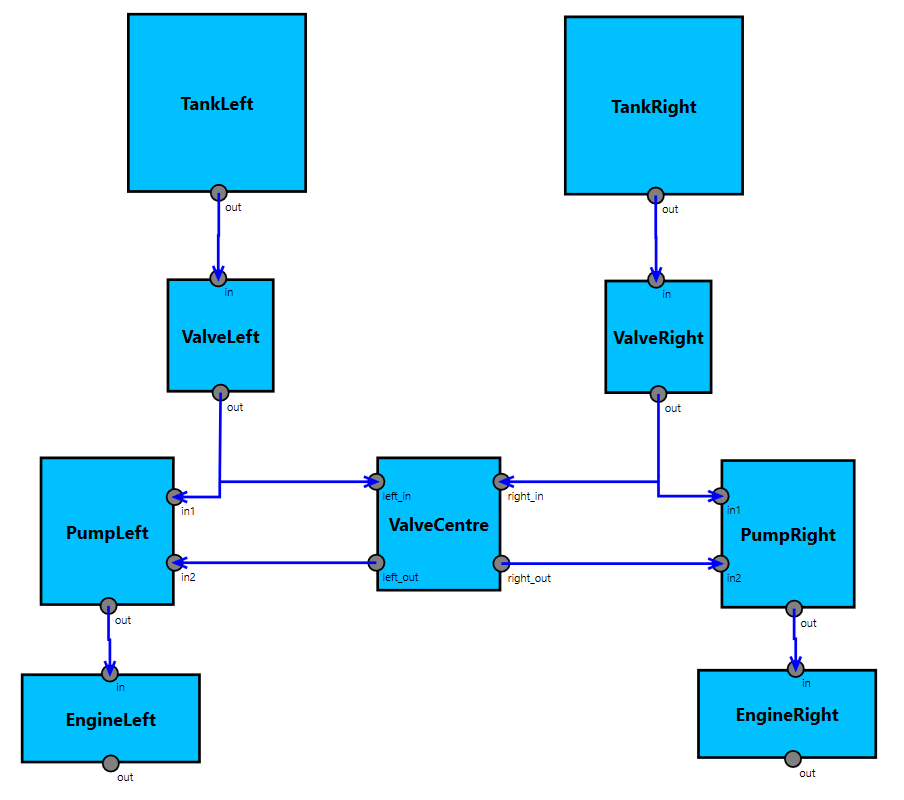

Architecture for the Fuel System
Architecture for the Fuel System

Adding components is straightforward, and ports can be added and positioned in a simple, flexible manner. Components can also be copied and pasted as required. Joining ports is done by simply clicking and dragging the connections onto other ports.
